Lecture 14: Disjoint Sets

9/28/2020

Intro to Disjoint Sets

Meta-goals of the Coming Lectures: Data Structure Refinement

• Today: Deriving the "Disjoint Sets" data structure for solving the "Dynamic Connectivity" problem. We will see:
  • How a data structure design can evolve from basic to sophisticated
  • How our choice of underlying abstraction can affect asymptotic runtime and code complexity

The Disjoint Sets Data Structure

• The Disjoint Sets data structure has two operations:
  • connect(x, y): Connects x and y
  • isConnected(x, y): Returns true if x and y are connected. Connections can be transitive, i.e. they don't need to be direct
• Useful for many purposes
  • Percolation theory:
    • Computational chemistry
  • Implementation of other algorithms
    • Kruskal's algorithm

Disjoint Sets on Integers

• To keep things simple, we're going to:
  • Force all items to be integers instead of arbitrary data
  • Declare the number of items in advance, everything is disconnected at start

The Disjoint Sets Interface

public interface DisjointSets {
    /** Connects two items P and Q */
    void connect(int p, int q);

    /** Checks to see if two items are connected */
    boolean isConnected(int p, int q);
}

• Goal: Design an efficient DisjointSets implementation
  • Number of elements N can be huge
  • Number of method calls M can be huge
  • Calls to methods may be interspersed (e.g. can't assume it's only connect operations followed by only isConnected operations)

The Naive Approach

• Naive approach:
  • Connect two things: Record every single connecting line in some data structure
  • Checking connectedness: Do some sort of iteration over the lines to see if one thing can be reached from the other

A Better Approach: Connected Components

• Rather than manually writing out every single connecting line, only record the sets that each item belongs to
• For each item, its connected component is the set of all items that are connected to that item
• Better approach: Model connectedness in terms of sets
  • How things are connected isn't something we need to know
  • Only need to keep track of which connected component each item belongs to

Quick Find

Performance Summary

• ListOfSetsDS
  • Constructor: Theta(N)
  • Connect: Theta(N)
  • isConnected: O(N)
• ListofSetsDS is complicated and slow
  • Operations are linear when number of connections are small
    • Have to iterate over all sets
  • Important point: By deciding to use List of Sets, we have doomed ourselves to complexity and bad performance

My Approach: Just use a list of integers

• Idea #2: List of integers where ith entry gives set number (aka "id") of item i
  • connect(p, q): Change entries that equal id[p] and id[q]
• QuickFindDS
  • Constructor: Theta(N)
  • Connect: Theta(N)
  • isConnected: Theta(1)

Quick Union

Improving the Connect Operation

• Next approach (Quick Union): We will still represent everything as connected components, and we will still represent connected components as a list of integers. However, values will be chosen so that connect is fast
• How could we change our set representation so that combining two sets into their union requires changing one value?
  • Idea: Assign each item a parents (instead of an id). Results in a tree-like shape
  • An innocuous sounding, seemingly arbitrary solution
• Ex: connect(5, 2)
  • Find root(5)
  • Find root(2)
  • Set root(5)'s value equal to root(2)

Set Union Using Rooted-Tree Representation

• What are some potential performance issues with this approach
  • Tree can get too tall! root(x) becomes expensive
  • For N items, this means a worst case runtime of Theta(N)
• QuickUnionDS
  • Constructor: Theta(N)
  • Connect: O(N)
  • isConnected: O(N)
• QuickUnion defect: Trees can get tall. Results in potentially even worse performance than QuickFind if tree is imbalanced
  • Observation: Things would be fine if we just kept our tree balanced

Weighted Quick Union

Weighted Quick Union

• Modify quick-union to avoid tall trees
  • Track tree size (number of elements)
  • New rule: Always link root of smaller tree to larger tree
  • Note: this rule is based on weight, not height

Implementing WeightedQuickUnion

• Minimal changes needed
  • Use parent[] array as before
  • isConnected(int p, int q) requires no changes
  • connect(int p, int q) needs to somehow keep track of sizes
    • Two common approaches:
      • Use values other than -1 in parent array for root nodes to track size
      • Create a separate size array

Weighted Quick Union Performance

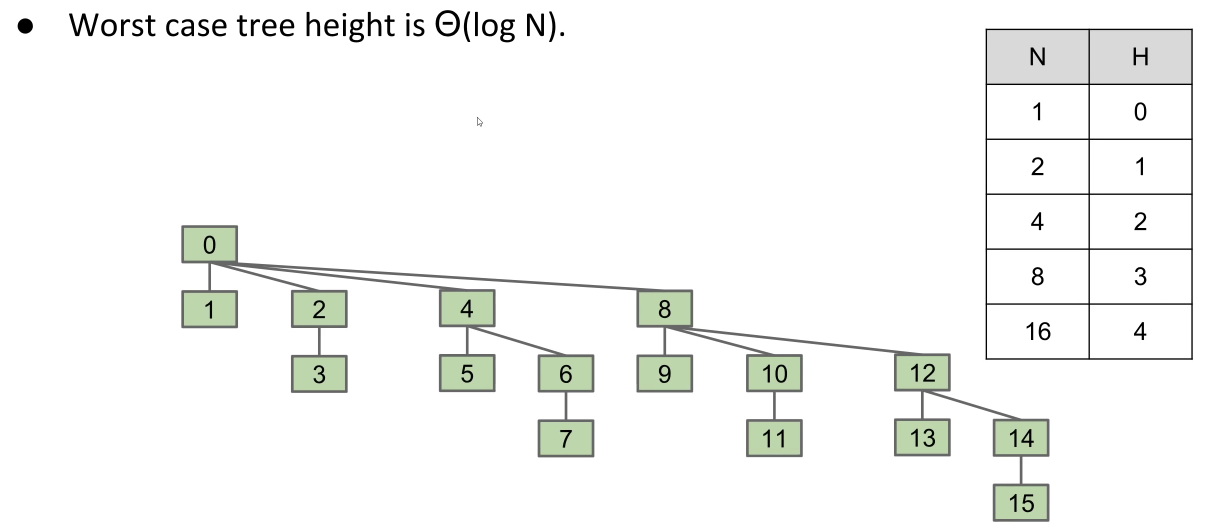

• Consider the worst case where the tree height grows as fast as possible
  • The height increases logarithmically with respect to the number of elements
  • Worst case tree height is Theta(log N)


Performance Summary

• WeightedQuickUnionDS
  • Constructor: Theta(N)
  • Connect: O(log N)
  • isConnected(log N)
• QuickUnion's runtimes are O(H), and WeightedQuickUnionDS height is given by H = O(log N). THerefore connect and isConnected are both O(log N)
• By tweaking QuickUnionDS we've achieved logarithmic time performance

Why Weights Instead of Heights?

• We used the number of items in a tree to decide upon the root
  • Why not use the height of the tree?
    • Worst case performance for HeightedQuickUnionDS is asymptotically the same! Both are Theta(log N)
    • Resulting code is complicated with no performance gain

Path Compression (CS 170 Spoiler) (Can we do better?)

What We've Achieved

• Performing M operations on a DisjointSet object with N elements:
  • For our naive implementation, runtime is O(MN)
  • For our best implementation, runtime is O(N + M log N)
  • Key point: Good data structure unlocks solutions to problems that could otherwise not be solved!
  • Good enough for all practical uses, but could we theoretically do better?

CS 170 Spoiler: Path Compression: A Clever Idea

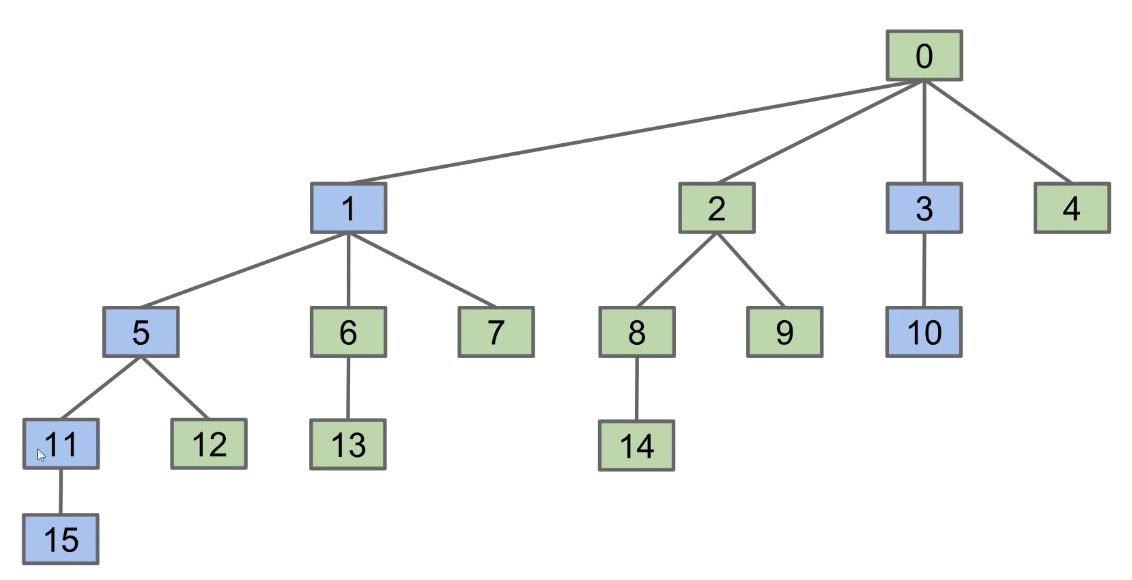

• Below is the topology of the worst case if we use WeightedQuickUnion
  • Clever Idea: When we do isConnected(15, 10), tie all nodes seen to the root
    • Additional cost is insignificant (same order of growth)

• Path compression results in a union/connected operations that are very very close to amortized constant time
  • M operations on N nodes is O(N + M lg* N) - you will see this in CS 170
  • lg* is less than 5 for any realistic input
  • A tighter bound: O(N + M \alpha(N)), where \alpha is the inverse Ackermann function
  • The inverse Ackermann function is less than 5 for all practical inputs!

A Summary of Our Iterative Design Process

• And we're done! The end result of our iterative design process is the standard way disjoint sets are implemented today - quick union and path compression
• The ideas that made our implementation efficient:
  • Represent sets as connected components (don't track individual connections)
    • ListofSetsDS: Store connected components as a List of Sets (slow, complicated)
    • QuickFindDS: Store connected components as set ids
    • QuickUnionDS: Store connected components as parent ids
      • WeightedQuickUnionDS: Also track the size of each set, and use size to decide on a new tree root
        • WeightedQuickUnionWithPathCompressionDS: On calls to connect and isConnected, set parent id to the root for all items seen

Summary From Discussion

Disjoint Sets

• QuickFind uses an array of integers to track which set each element belongs to
• QuickUnion stores the parent of each node rather than the set to which it belongs sto and merges sets by setting the parent of one root to the other
• WeightedQuickUnion does the same as QuickUnion except it decides which set is merged into which by size, reducing the likelihood of large trees
• WeightedQuickUnion with Path Compression sets the parent of each node to the set's root whenever find() is called on it
