Lecture 32: More Quick Sort, Sorting Summary

11/10/2020

Partition Sort a.k.a. Quicksort

• Quicksorting N items:
  • Partition on leftmost item
  • Quicksort left half
  • Quicksort right half
• Run time is Theta(N log N) in the best case, Theta(N^2) in the worst case, and Theta(N log N) in the average case

Avoiding the Worst Case

• Four philosophies:
  • Randomness: Pick a random pivot or shuffle before sorting
  • Smarter pivot selection: Calculate or approximate the median
  • Introspection: Switch to a safer sort if recursion goes too deep
  • Preprocess the array: Could analyze array to see if Quicksort will be slow. No obvious way to do this, though

Philosophy 1: Randomness (Preferred Approach)

• If pivot always lands somewhere "good", Quicksort is Theta(N log N). However, the ver rare Theta(N^2) cases do happen in practice
  • Bad ordering: Array already in sorted order
  • Bad elements: Array with all duplicates
• Deal with bad ordering:
  • Strategy 1: Pick pivots randomly
  • Strategy 2: Shuffle before sorting
• THe second strategy requires care in partitioning code to avoid Theta(N^2) behavior on arrays of duplicates
  • Common bug in textbooks!

Philosophy 2a: Smarter Pivot Selection (constant time pivot pick)

• Randomness is necessary for best Quicksort performance! For any pivot selection procedure that is:
  • Deterministic
  • Constant time
• The resulting Quicksort has a family of dangerous inputs that an adversary could easily generate

Philosophy 2b: Smarter Pivot Selection (linear time pivot pick)

• Could calculate the actual median in linear time
  • "Exact median Quicksort" is safe: Worst case Theta(N log N), but it is slower than Mergesort
• Raises interesting question though: How do you compute the median or an array? Will talk about how to do this later today

Philosophy 3: Introspection

• Can also simply watch your recursion depth
  • If it exceeds some critical value (say 10 ln N), switch to mergesort

Sorting Summary (so far)

• Listed by mechanism:
  • Selection sort: Find smallest item and put it at the front
  • Insertion sort: Figure out where to insert the current item
  • Merge sort: Merge two sorted halves into one sorted whole
  • Partition (quick) sort: Partition items around a pivot


Quicksort Flavors

• Quicksort is the fastest, but only if we make the right decisions about:
  • Pivot selection
  • Partition algorithm
  • How we deal with avoiding the worst case

Tony Hoare's In-place Partitioning Scheme

• Proposed scheme where two pointers walk towards each other
  • Left pointer loves small items and hates large or equal items
  • Right pointer loves large items and hates small or equal items
  • Big idea: Walk pointers toward each other, stopping on a hated item
    • When both pointers have stopped, swap and move pointers by one towards each other
    • End result is that things on left are "small" and things on the right are "large"
  • When pointers cross, you are done
  • Swap pivot where right pointer ends up
• This partitioning scheme yields a very fast Quicksort and is faster than mergesort
  • Though faster schemes have been found since
    • Best known Quicksort uses a two-pivot scheme
  • Overall runtime still depends crucially on pivot selection strategy!

What if we don't want randomness?

• Another approach: Use the median (or an approximation)
  • The best possible pivot is the median
    • Splits problem into two problems of size N/2

Median Identification

• Is it possible to find the median in Theta(N) time?
  • Yes! Use 'BFPRT' (called PICK in original paper)
  • In practice, rarely used
• However, while runtime is still Theta(N log N) this makes quicksort much slower than mergesort

Quick Select

The Selection Problem

• Computing the exact median would be great for picking an item to partition around. Gives us a "safe quick sort"
  • Unfortunately, it turns out that exact median computation is too slow
• However, it turns out that partitioning can be used to find the exact median
  • The resulting algorithm is the best known median identification algorithm

Quick Select

• Goal, find the median
• Keep partitioning until the pivot lands in the exact middle of the array
  • Only need to partition the half that contains the middle index of the array

Worst Case Performance of Quick Select

• Worst asymptotic performance Theta(N^2) occurs if array is in sorted order
  • Can mostly negate this using shuffling

Expected Performance

• On average, Quick Select will take Theta(N) time
• On average, pivot ends up about halfway:
  • Number of compares: N + N/2 + N/8 + ... + 1 ~~ Theta(N)

Quicksort with Quickselect

• What if we used Quickselect to find the exact median?
  • Resulting algorithm is still quite slow. Also: a little strange to do a bunch of partitions to identify the optimal item to partition around

Stability, Adaptiveness, Optimization

Other Desirable Sorting Properties: Stability

• A sort is said to be stable if order of equivalent items is preserved
• Equivalent items don't "cross over" when being stably sorted

Sorting Stability

• Is insertion sort stable?
  • Yes
  • Equivalent items never move past their equivalent elements
• Is Quicksort stable?
  • Depends on partitioning strategy
  • Three array partitioning will be stable
  • Hoare partitioning may not be stable (we may swap equivalent items)

Stability

Optimizing Sorts

• Additional tricks we can play:
  • Switch to insertion sort:
    • When a subproblem reaches size 15 or lower, use insertion sort
  • Make sort adaptive: Exploit existing order in array (Insertion Sort, SmoothSort, TimSort)
  • Exploit restrictions on set of keys. If number of keys is some constant, can sort faster
  • For Quicksort: Make the algorithm introspective, switching to a different sorting method if recursion goes too deep. Only a problem for deterministic flavors of Quicksort

Arrays.sort

• In Java, Arrays.sort(someArray) uses:
  • Mergesort if someArray consists of objects
  • Quicksort if someArray consists of primitives

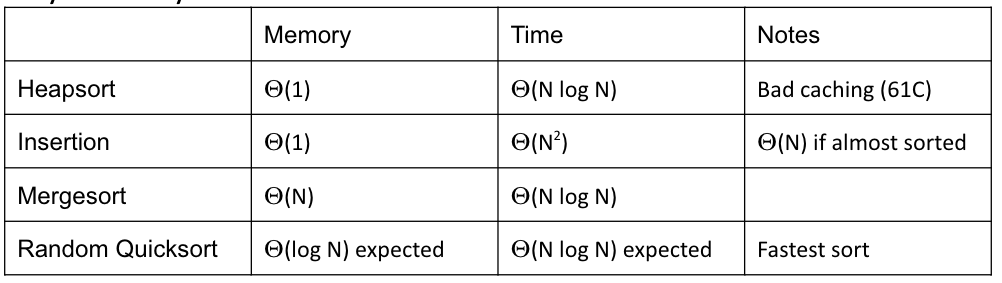

Sorting Summary

Sorting Landscape

• The landscape of the sorting algorithms we've studied
  • Three basic flavors: Comparison, Alphabet, and Radix based
  • Each can be used in different circumstances, important part was the analysis and the deep thought

Sorting vs Searching

• During the data structures part of the class, we studied what we called the "search problem": Retrieve data of interest
• There are some interesting connections between the two
